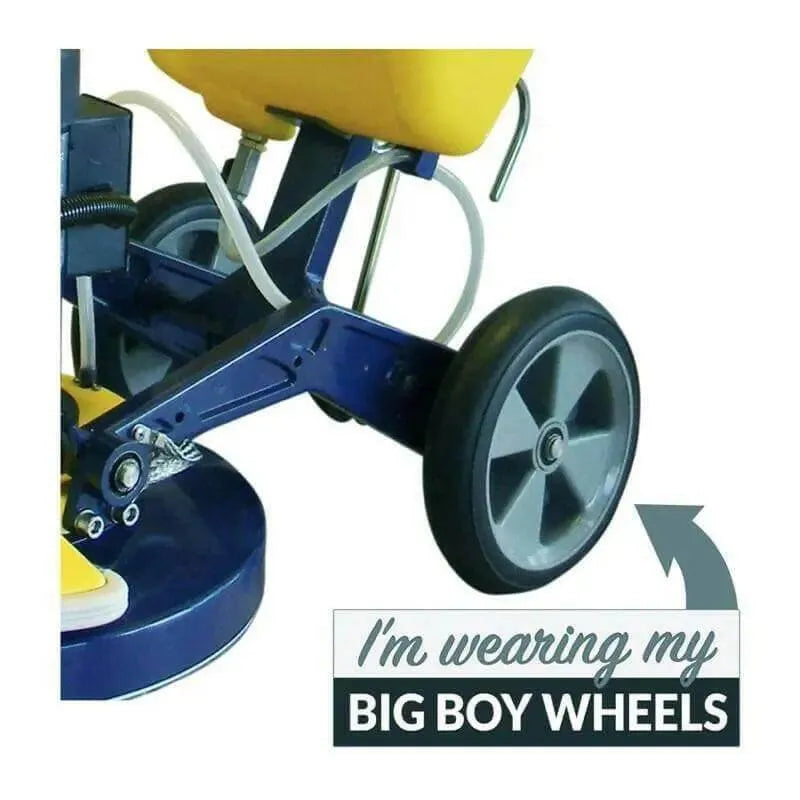

10 inch Semi-Pneumatic soft rubber wheel kit with Stainless Steel axle. Replace your stock Cimex 7.5 inch wheels with the New Big Boy Wheels! Sealed ball bearings and non-skid rubber. This is a wonderful upgrade for the best carpet cleaning machine on the market. Make your Cimex carpet scrubber even better with this 10 inch wheel upgrade.

Big Boy Wheel Kit Installation Instructions Tools Needed: Wood blocks, Claw Hammer, adjustable wrench or 19mm wrench, Pliers, C Clip remover Pliers, Lubricant. First block up the blue lift fork arms of the machine so the wheels are off the ground. Then take the claw hammer and remove both hubcaps with the claw side of the hammer. Next remove the Sellock Pin at the top of the Swivel Clamp Rod using a set of standard pliers. Prop the handle of the machine up so it doesn't fall. Remove the Swivel clamp rod with an adjustable wrench or 19mm open end boxed end wrench. Remove both wheels and the axle should slide out, if it does not use WD40 as a lubricating aid. Clean the Lift fork holes with the WD40 and slide the new stainless steel axle in place. reinstall the swivel clamp rod. Then put both wheels on the machine (you will need to install the washers between the lift fork and the wheel bearing for proper centering of the axle)! Use the “C” clamp remover pliers to install the “C” clip and it is finished! If you have any questions please call us! Excellent Supply 1-800-330-1888 Thank you for purchasing the Big boy Wheel Cimex Upgrade,
